  • SELECTION

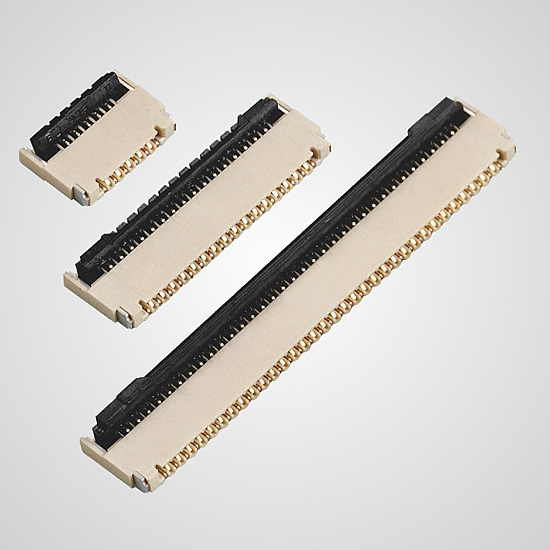

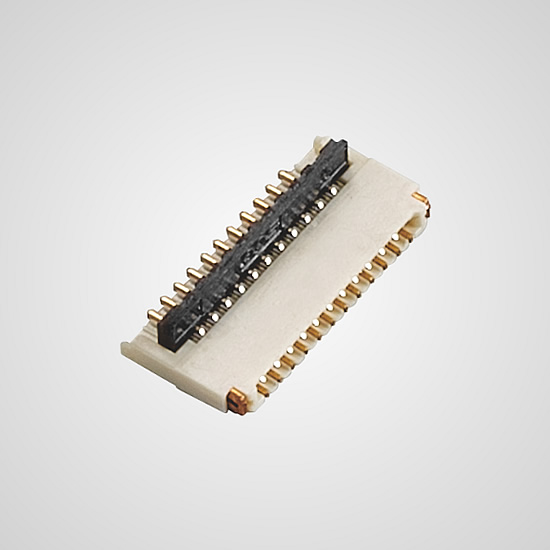

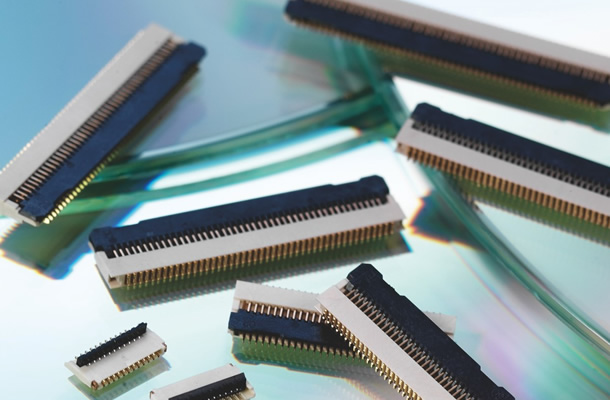

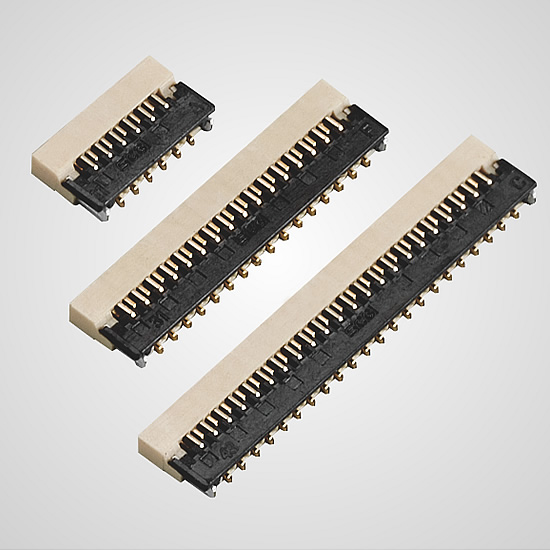

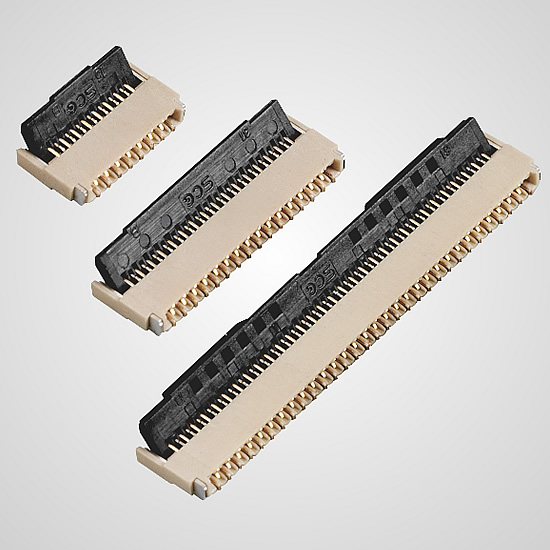

FPC/FFC Connector
  • Product
  • PITCH
    mm
  • Series No.
  • Type
  • Product Height
    mm
  • Pin No.
  • Remark
  • 0.2
  • BL206
  • ZIF, Back-Flip Right Angle Dual Contact
  • 0.6mm
  • 7/23/31/41/51
  • 0.3
  • BL306
  • ZIF, Back-Flip Right Angle Dual Contact
  • 0.6mm
  • 7 / 9 / 11 / 13 / 15 / 17 / 21 / 23 / 25 / 27 / 31 / 33 / 35 / 37 / 39 / 45 / 51
  • 0.3
  • BL309P
  • ZIF, Back-Flip Right Angle Dual Contact
  • 0.9mm
  • 7 / 9 / 11 / 13 / 15 / 17 / 21 / 23 / 25 / 27 / 31 / 33 / 35 / 37 / 39 / 45 / 51 / 61 / 71
  • 0.3
  • BL309 / BL309M
  • ZIF, Back-Flip Right Angle Lower Contact
  • 0.9mm
  • 9 / 11 / 13 / 15 / 17 / 19 / 21 / 23 / 25 / 27 / 29 / 31 / 33 / 35 / 37 / 39 / 41 / 43 / 45 / 49 / 51 / 57 / 61 / 67 / 71
  • 0.3
  • BL143 / BL143M
  • ZIF, Back-Flip Right Angle Dual Contact
  • 0.9mm
  • 9 / 11 / 13 / 15 / 17 / 19 / 21 / 23 / 25 / 27 / 29 / 31 / 33 / 35 / 37 / 39 / 41 / 43 / 45 / 49 / 51 / 57 / 61 / 67 / 71
  • 0.3
  • BL310 / BL310M / BL310S
  • ZIF, Back-Flip Right Angle Dual Contact
  • 1.0mm
  • 9 / 11 / 13 / 15 / 17 / 19 / 21 / 23 / 25 / 27 / 29 / 31 / 33 / 35 / 37 / 39 / 41 / 43 / 45 / 49 / 51 / 57 / 61 / 67 / 71
  • 0.3
  • BL125 / BL125M
  • ZIF, Front-Flip Right Angle Lower Contact
  • 1.0mm
  • 9 / 11 / 13 / 15 / 17 / 19 / 21 / 23 / 25 / 27 / 29 / 31 / 33 / 35 / 37 / 39 / 41 / 43 / 45 / 49 / 51 / 57 / 61 / 67 / 71
  • 0.5
  • BL509
  • ZIF, Back-Flip Right Angle Dual Contact
  • 0.9mm
  • 4 ~ 50
  • 0.5
  • BL509N
  • LIF, Right Angle Dual Contact
  • 0.9mm
  • 4/6/7/8/9/10/11/12
  • 0.5
  • BL115H
  • ZIF, Front-Flip Right Angle Lower Contact
  • 1.0mm
  • 4 ~ 50
