Wire to Board Connector
Product
PITCH
mm
Series No.
Type
Pin No.
Specifications
Remark

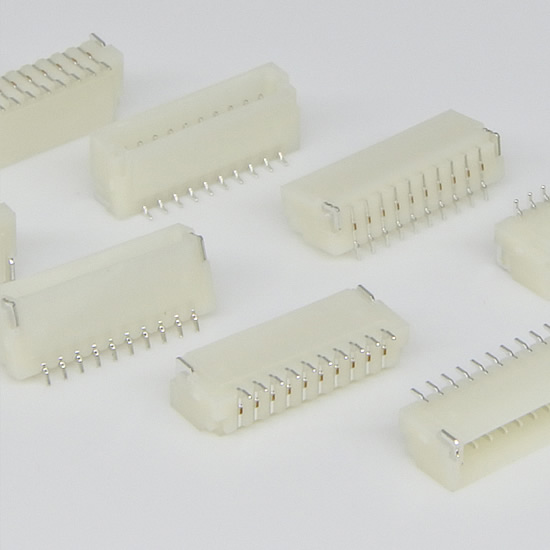

0.80
0801-xx-ST/RT
Single Row Straight / Right Angle SMT
2 ~ 24
Current Rating : 0.2A / 0.5A AC/DC Voltage Rating : 30V AC/DC Contact Resistance : 20mΩMax. Withstanding Voltage : 200V AC/minute Insulation Resistance : 100MΩMin. Temperature Range : -25℃ ~ +85℃

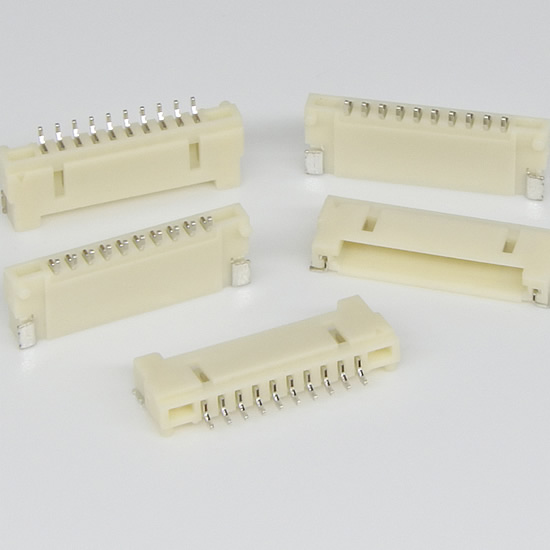

1.00
1001-xx-ST/RT-S
Single Row Straight / Right Angle SMT
2 ~ 15 / 20
Current Rating : 1A AC/DC Voltage Rating : 50V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 500V AC/minute Insulation Resistance : 100MΩ Min. Temperature Range : -25℃ ~ +85℃

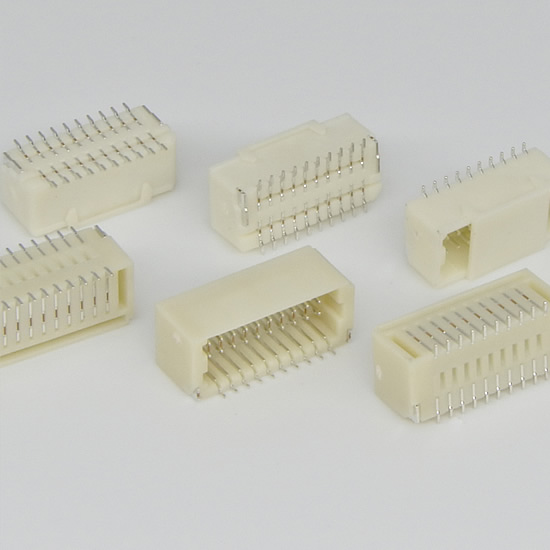

1.00
1001D-2*xx-ST/RT
Dual Row Straight / Right Angle SMT
20 / 30 / 40 / 50
Current Rating : 1A AC/DC Voltage Rating : 50V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 500V AC/minute Insulation Resistance : 100MΩ Min. Temperature Range : -25℃ ~ +85℃

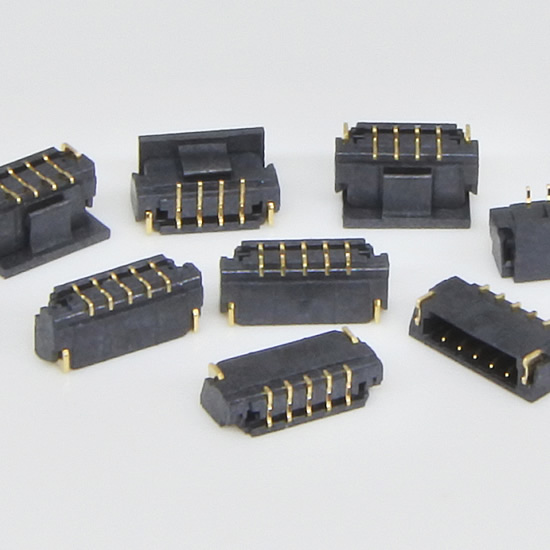

1.20
1201-xx-RT
Single Row Right Angle SMT
2 ~ 6
Current Rating : 2A AC/DC Voltage Rating : 50V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 5000V AC/minute Insulation Resistance : 100MΩ Min. Temperature Range : -25℃ ~ +85℃

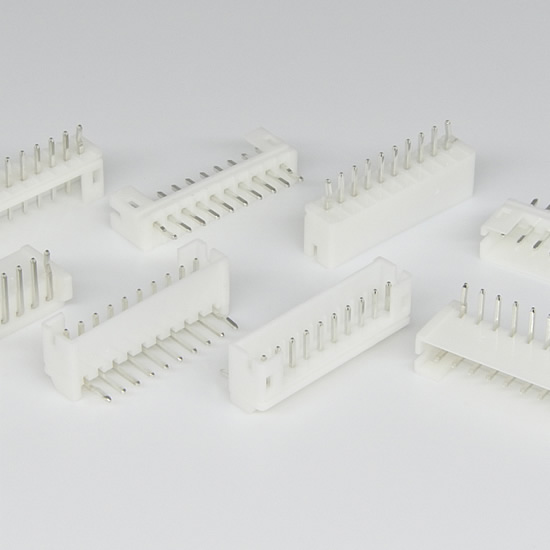

1.25
1251-xx-ST/RT
Single Row Straight / Right Angle DIP
2 ~ 15
Current Rating : 1A AC/DC Voltage Rating : 100V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 250V AC/minute Insulation Resistance : 100MΩ Min. Temperature Range : -25℃ ~ +85℃

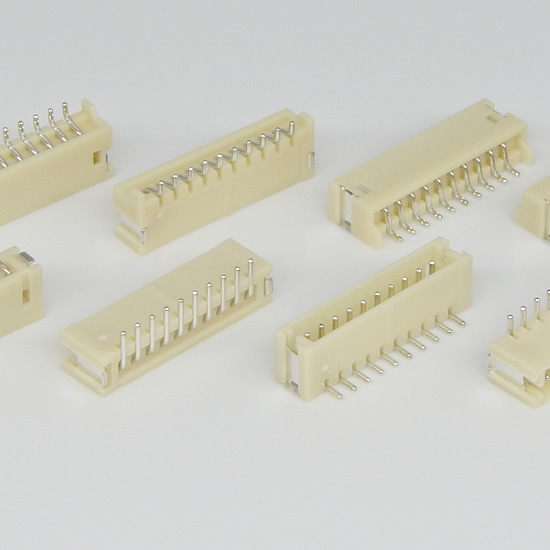

1.25
1251-xx-ST/RT-S
Single Row Straight / Right Angle SMT
2 ~ 15
Current Rating : 1A AC/DC Voltage Rating : 100V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 250V AC/minute Insulation Resistance : 100MΩ Min. Temperature Range : -25℃ ~ +85℃

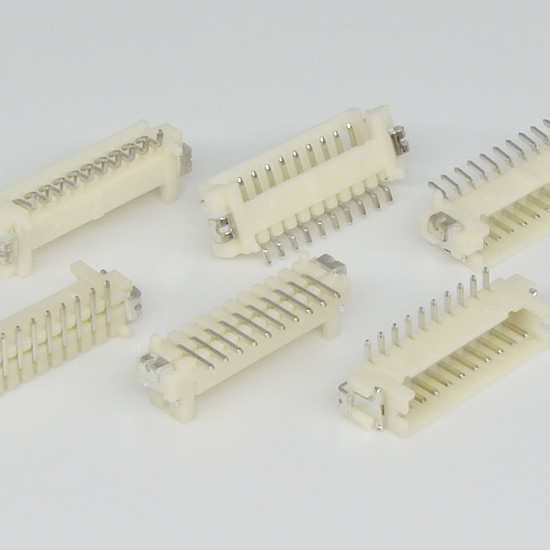

1.25
1251D-xx-RT-S
Dual Row Right Angle SMT W/POST
20 / 25 / 30
Current Rating : 1A AC/DC Voltage Rating : 100V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 250V AC/minute Insulation Resistance : 100MΩ Min. Temperature Range : -25℃ ~ +85℃
1.25
1251F-xx-ST/RT-S
Single Row Straight / Right Angle SMT W/ POST
2 ~ 15
Current Rating : 1A AC/DC Voltage Rating : 100V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 250V AC/minute Insulation Resistance : 100MΩ Min. Temperature Range : -25℃ ~ +85℃
1.50
1501Z-xx-ST/RT-S
Single Row Straight / Right Angle SMT
2 ~ 13
Current Rating : 1A AC/DC Voltage Rating : 50V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 500V AC/minute Insulation Resistance : 500MΩ Min. Temperature Range : -25℃ ~ +85℃

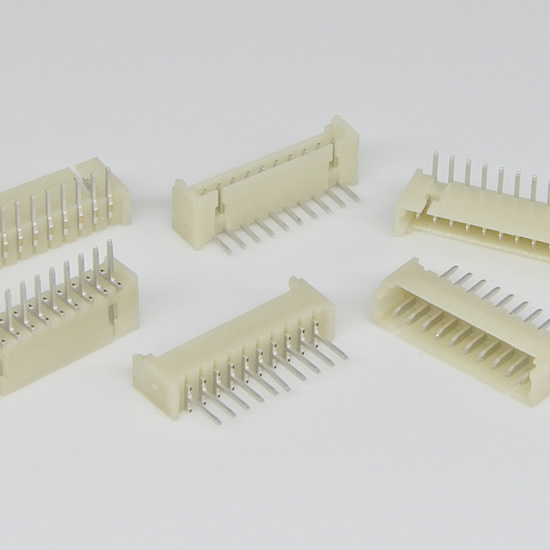

2.00
2001J-xx-ST/RT
Single Row Straight / Right Angle DIP
2 ~ 16
Current Rating : 1A~3A AC/DC Voltage Rating : 100V AC/DC Contact Resistance : 20mΩ Max. Withstanding Voltage : 800V AC/minute Insulation Resistance : 1,000MΩ Min. Temperature Range : -25℃ ~ +85℃
