Wire to Board Connector
  • Product
  • PITCH
    mm
  • Series No.
  • Type
  • Pin No.
  • Specifications
  • Remark
  • 3.00

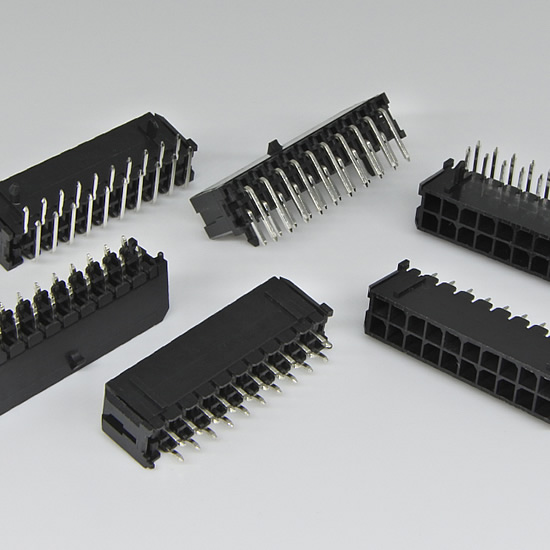

  • 3001-xx-ST/RT
  • Dual Row Straight / Right Angle DIP
  • 2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24
  • Current Rating : 5A AC/DC
    Voltage Rating : 250V AC/DC
    Contact Resistance : 10mΩ Max.
    Withstanding Voltage : 1,500V AC/minute
    Insulation Resistance : 1,000MΩ Min.
    Temperature Range : -25℃ ~ +85℃
