Wire to Board Connector
  • Product
  • PITCH
    mm
  • Series No.
  • Type
  • Pin No.
  • Specifications
  • Remark
  • 3.96

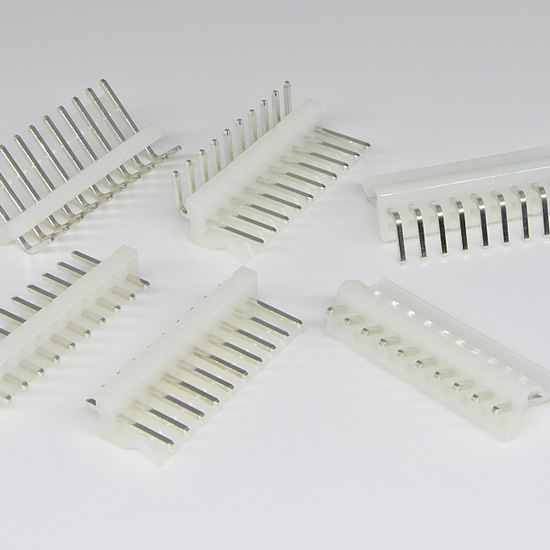

  • 3961-xx-ST / RT
  • Single Row Straight / Right Angle DIP
  • 2 ~ 20
  • Current Rating : 5A AC/DC
    Voltage Rating : 250V AC/DC
    Contact Resistance : 10mΩ Max.
    Withstanding Voltage : 1,500V AC/minute
    Insulation Resistance : 1,000MΩ Min.
    Temperature Range : -25℃ ~ +85℃
  • 3.96

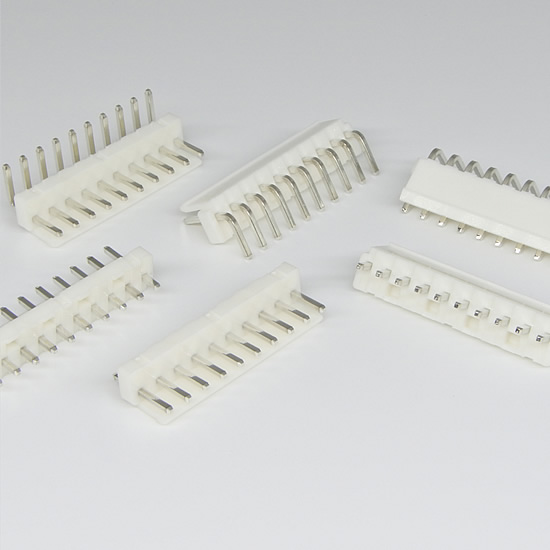

  • 3961VH-xx-ST/RT
  • Single Row Straight / Right Angle DIP
  • 2 ~ 14
  • Current Rating : 5A AC/DC
    Voltage Rating : 250V AC/DC
    Contact Resistance : 10mΩ Max.
    Withstanding Voltage : 1,500V AC/minute
    Insulation Resistance : 1,000MΩ Min.
    Temperature Range : -25℃ ~ +85℃
